Rectangular 4018 Series
Acoustic linear battens
NAVURBAN™
-
Balmoral -
Albany Oak -
Earlwood -
The Oaks -
Oakwood -
Auchen Flower -
Byron Blackbutt -
Tablelands -
Toorak -
Classic American Oak -
Birchgrove -
Windsor -
Hollywood -
Ashgrove -
Ravenswood
NAVURBAN Diamond™
-
Vanilla Bean -
Cremorne -
White Mountain Oak -
Box Wood -
Gum Flat -
Nutgrove -
Black Mountain
NAVURBAN Elements™
-
Brushed Opal -
Oyster -
Abstract Bronze -
Titanium
NAVURBAN Silken™
-
White Silk -
Avalon Shore -
Jet Black

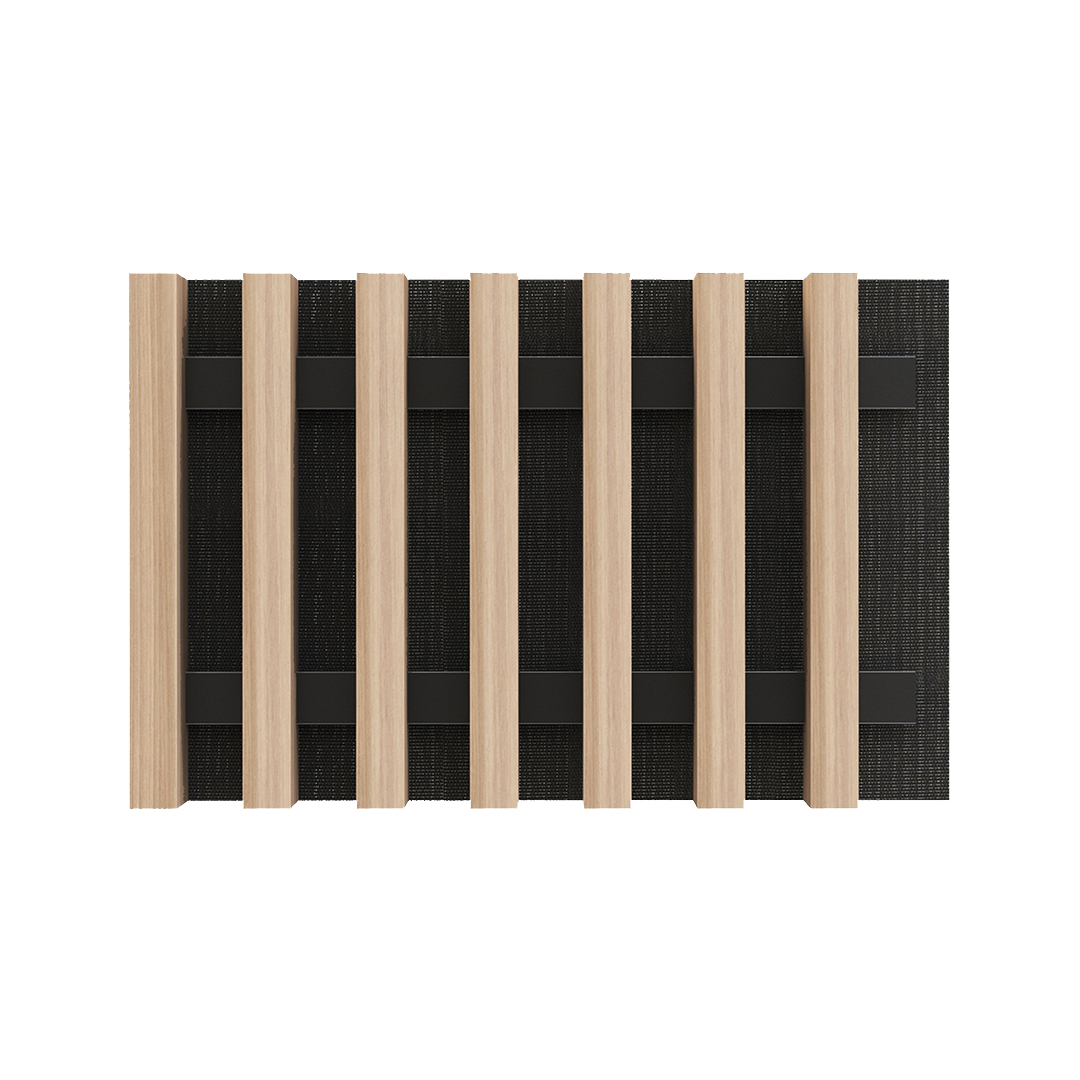

Profiles shown: Rectangular 4018-6, 4018-7
The acoustic Panels prefinished and preassembled linear batten system is manufactured in Australia from PEFC™ fire-resistant fibreboard (FR MDF). The battens in the Rectangular 4018 Series are seamlessly wrapped in your choice of NAVURBAN™ non-PVC Olefin decorative surface film.
Available Lengths FR
Derivatives of 2.4m and 3.0mEffective Cover
296mmMax Thickness
40mmWeight
Variable, according to profile setout.Fire Rating
Group 2 fire rated
Also available in Group 3 MR MDF
Applications
- Group 2 fire-rated interiors
- Horizontal, vertical, concave and convex curves, mitred corners
- Not suitable for external use
Acoustic Performance
- High-performance SC15 acoustic textile to reduce reverberation and increase speech intelligibility
- Achieves NRC of up to 1.0
Samples
- The sample profile comes in a set finish, order your preferred swatch as well
