Fluted 2550 Series
Fluted wall panels
NAVURBAN™
-
Balmoral -
Albany Oak -
Earlwood -
The Oaks -
Oakwood -
Auchen Flower -
Byron Blackbutt -
Tablelands -
Toorak -
Classic American Oak -
Birchgrove -
Windsor -
Hollywood -
Ashgrove -
Ravenswood
NAVURBAN Diamond™
-
Vanilla Bean -
Cremorne -
White Mountain Oak -
Box Wood -
Gum Flat -
Nutgrove -
Black Mountain
NAVURBAN Elements™
-
Brushed Opal -
Oyster -
Abstract Bronze -
Titanium
NAVURBAN Silken™
-
White Silk -
Avalon Shore -
Jet Black

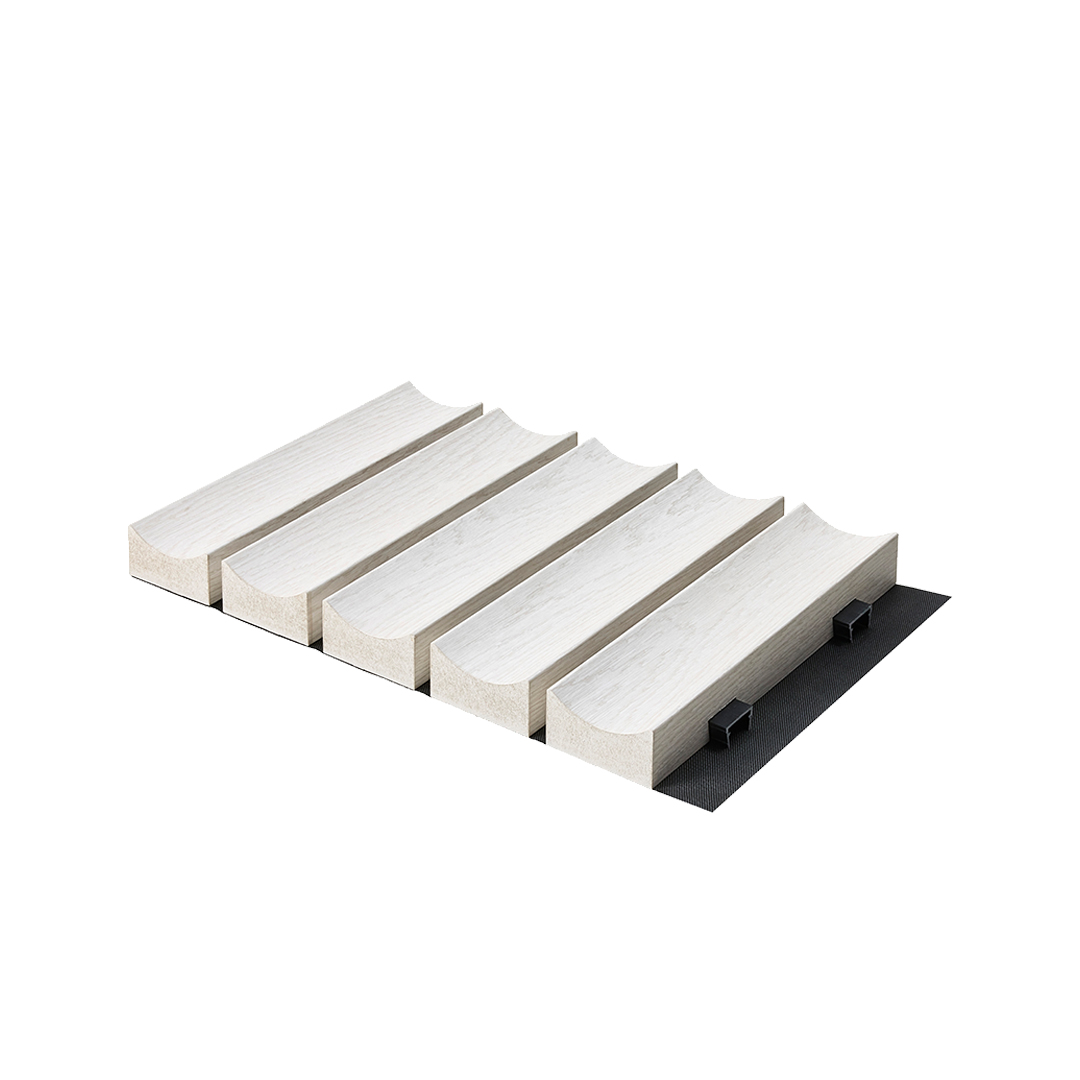

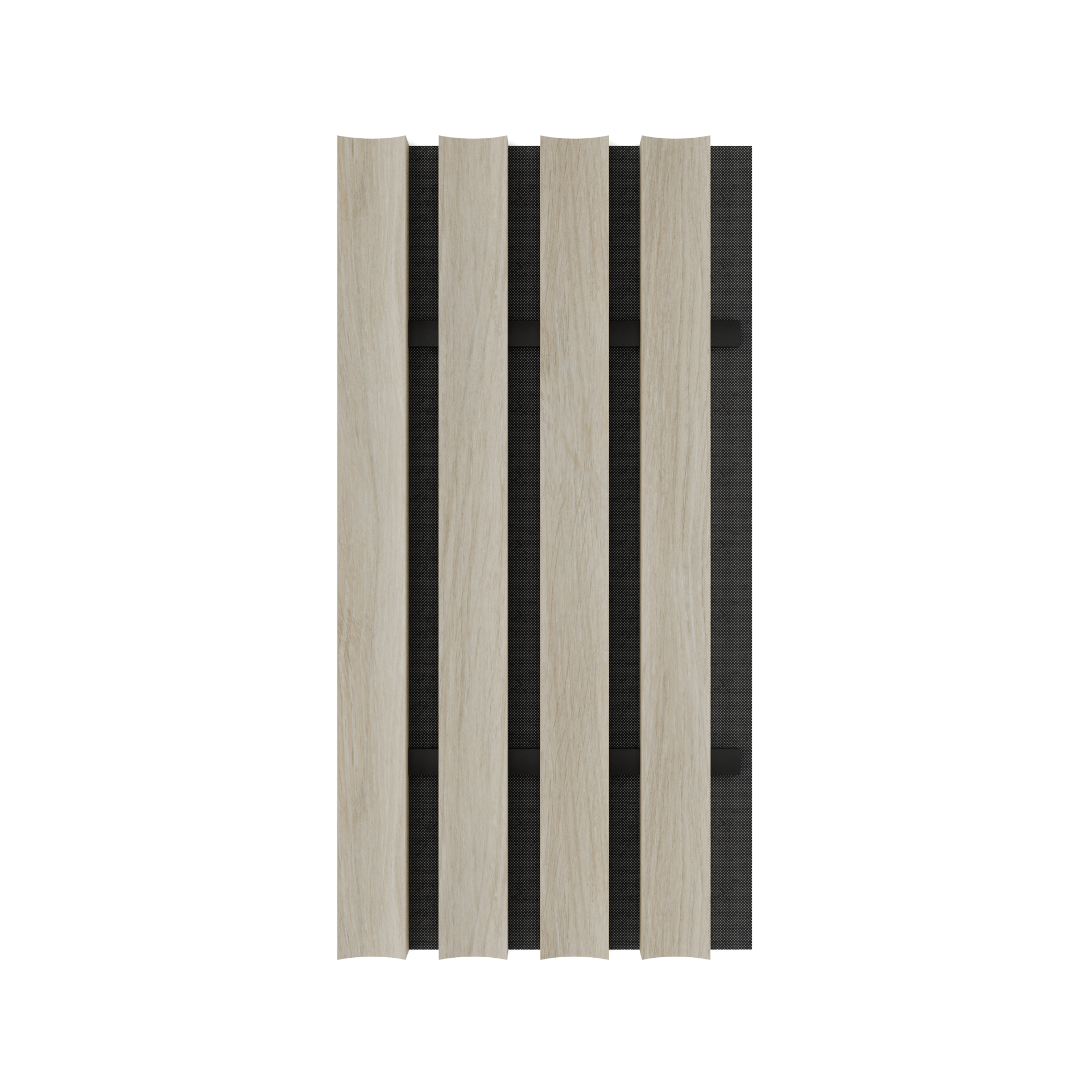

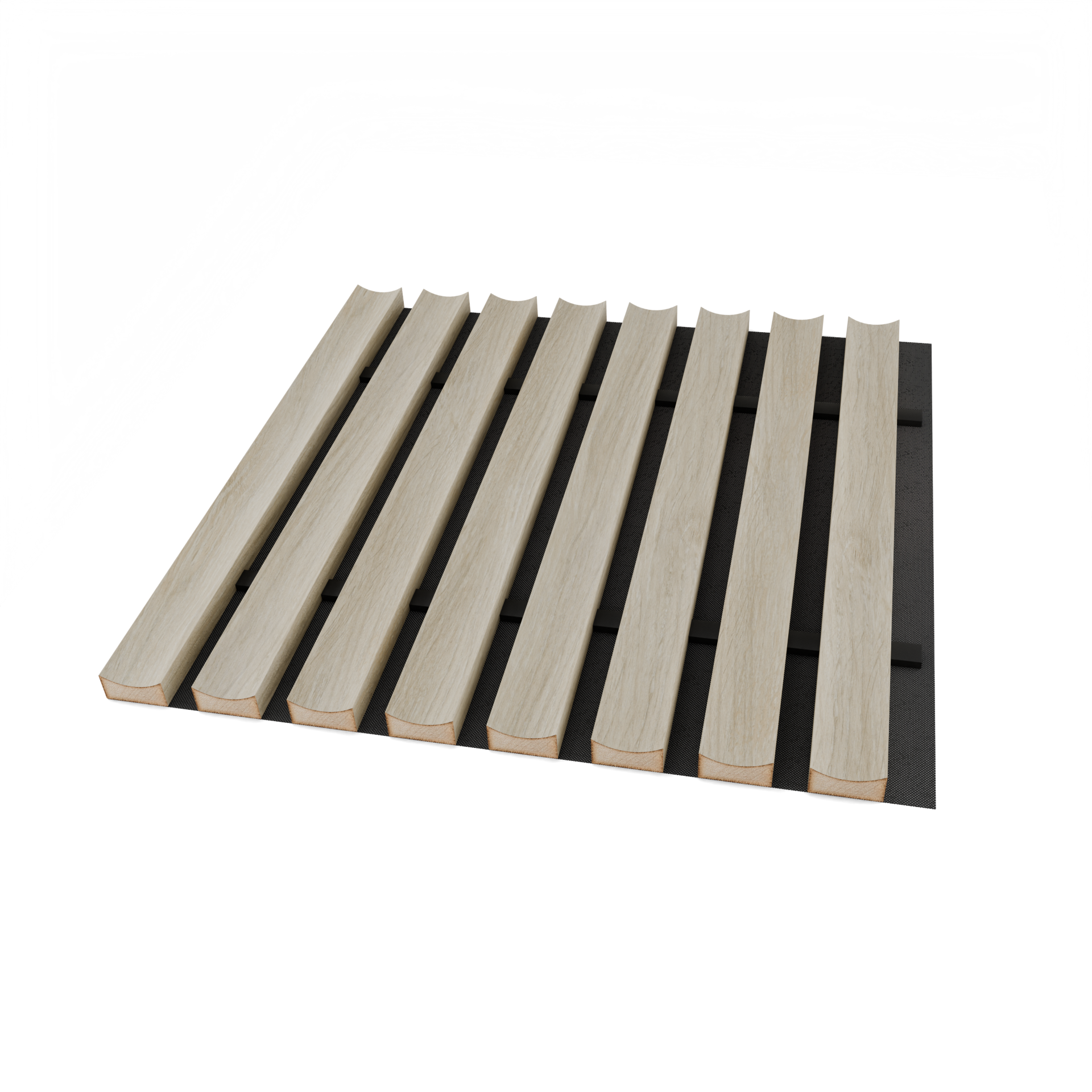

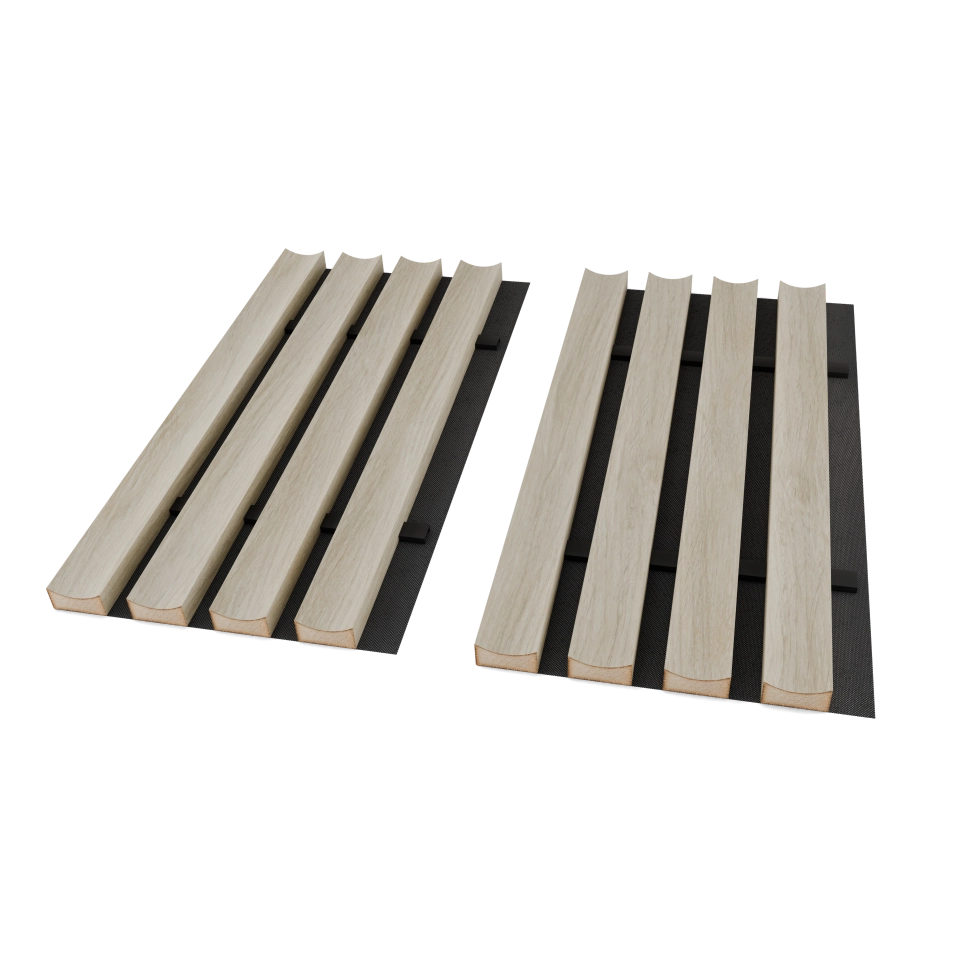

Profiles shown: Fluted 2550-3, 2550-4, 2550-5
The Panels prefinished and preassembled acoustic linear batten system is manufactured in Australia from PEFC™ moisture-resistant fibreboard (MR MDF). The battens in the Fluted 2550 Series are seamlessly wrapped in your choice of NAVURBAN™ non-PVC Olefin decorative surface film or veneer.
This Panels profile series is technically designed to empower the exploration of sculptural interiors. It accommodates curves and can be manipulated during installation to adhere to concave or convex surfaces. Panels can also be mitred for a seamless vertical or horizontal corner finish.
Available Lengths MR
Derivatives of 2.7m and 3.6mEffective Cover
296mmMax Thickness
25mmWeight
Variable, according to profile setout.Fire Rating
Group 3 fire rated
Also available in Group 2 MR MDF
Applications
- Group 3 fire-rated interiors
- Horizontal, vertical, concave and convex curves, mitred corners
- Not suitable for external use
Acoustic Performance
- High-performance SC15 acoustic textile to reduce reverberation and increase speech intelligibility
- Achieves NRC of up to 1.0
Samples
- The sample profile comes in a set finish, order your preferred swatch as well
