3060 Series
Acoustic timber ceiling
Solid Timber
-
Blackbutt Clear -
Blackbutt Warm Grey -
Blackbutt White Wash -
Hemlock Clear -
Hemlock Warm Grey -
Hemlock White Wash -
Spotted Gum Clear -
Spotted Gum Espresso -
Spotted Gum Walnut -
Western Red Cedar Clear -
Western Red Cedar Espresso -
Western Red Cedar Walnut

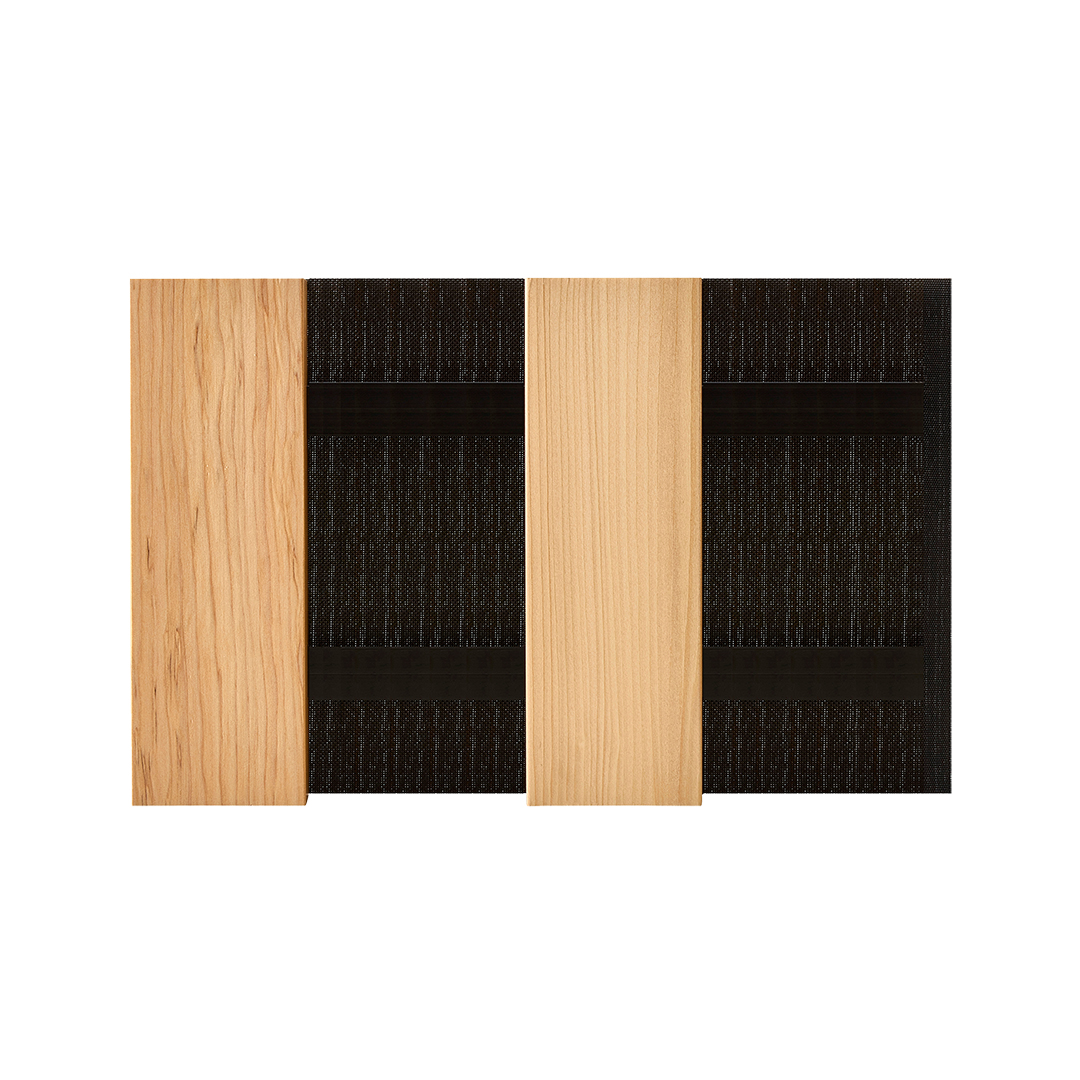

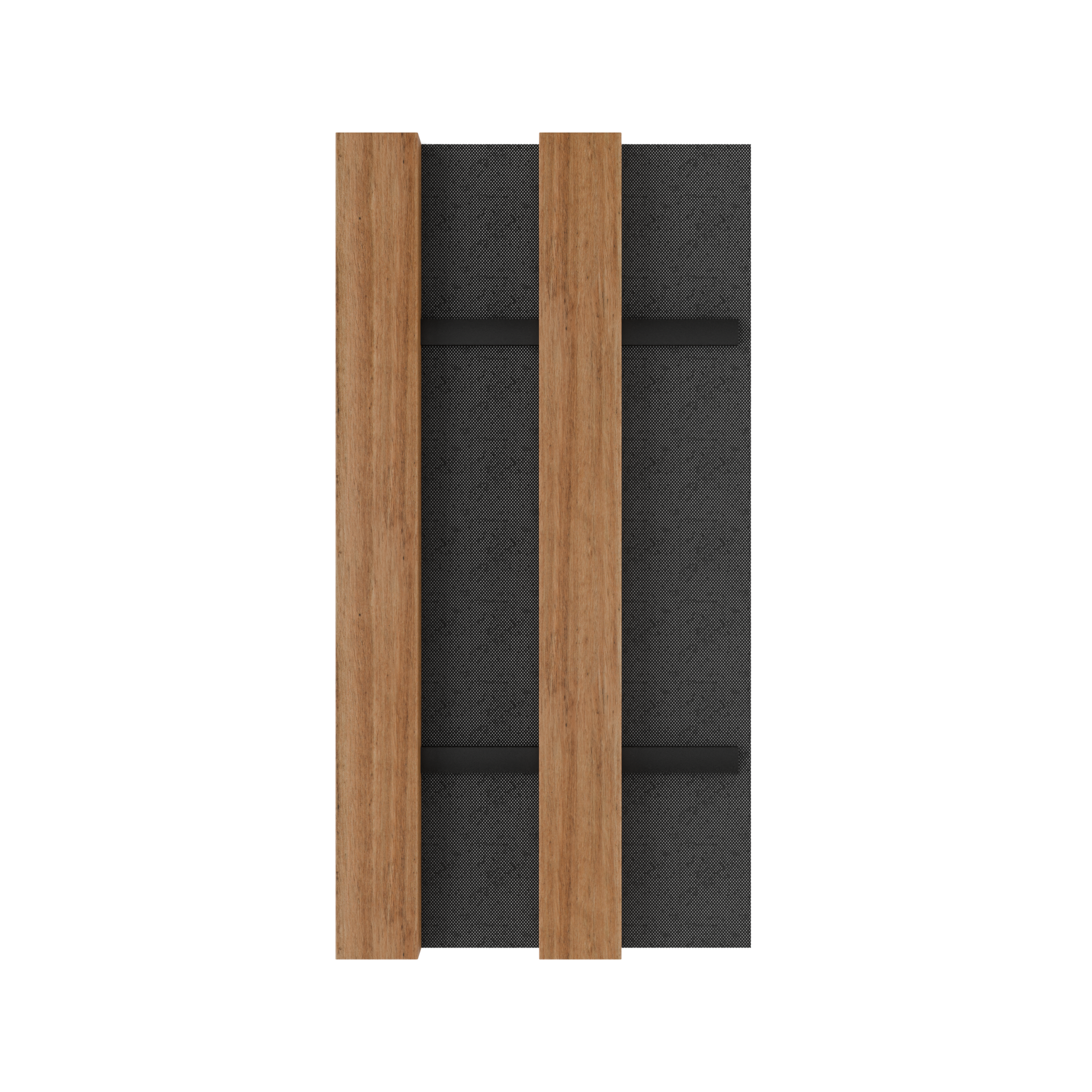

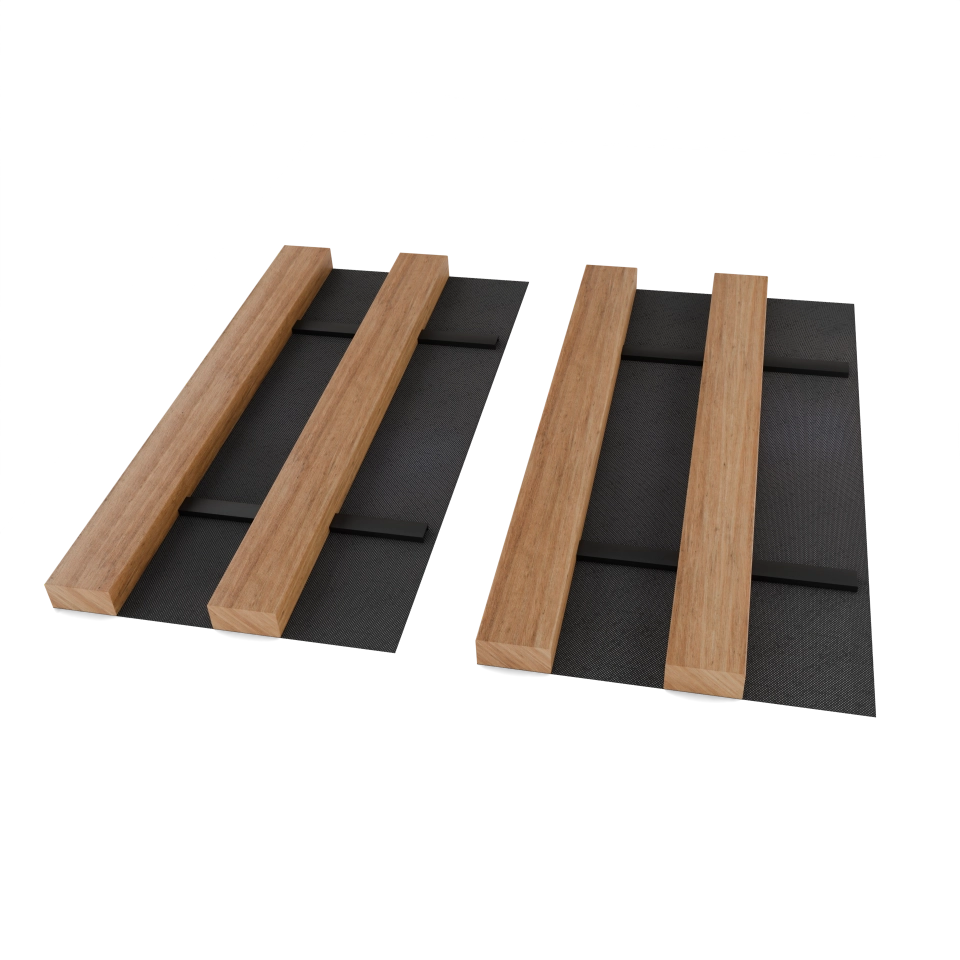

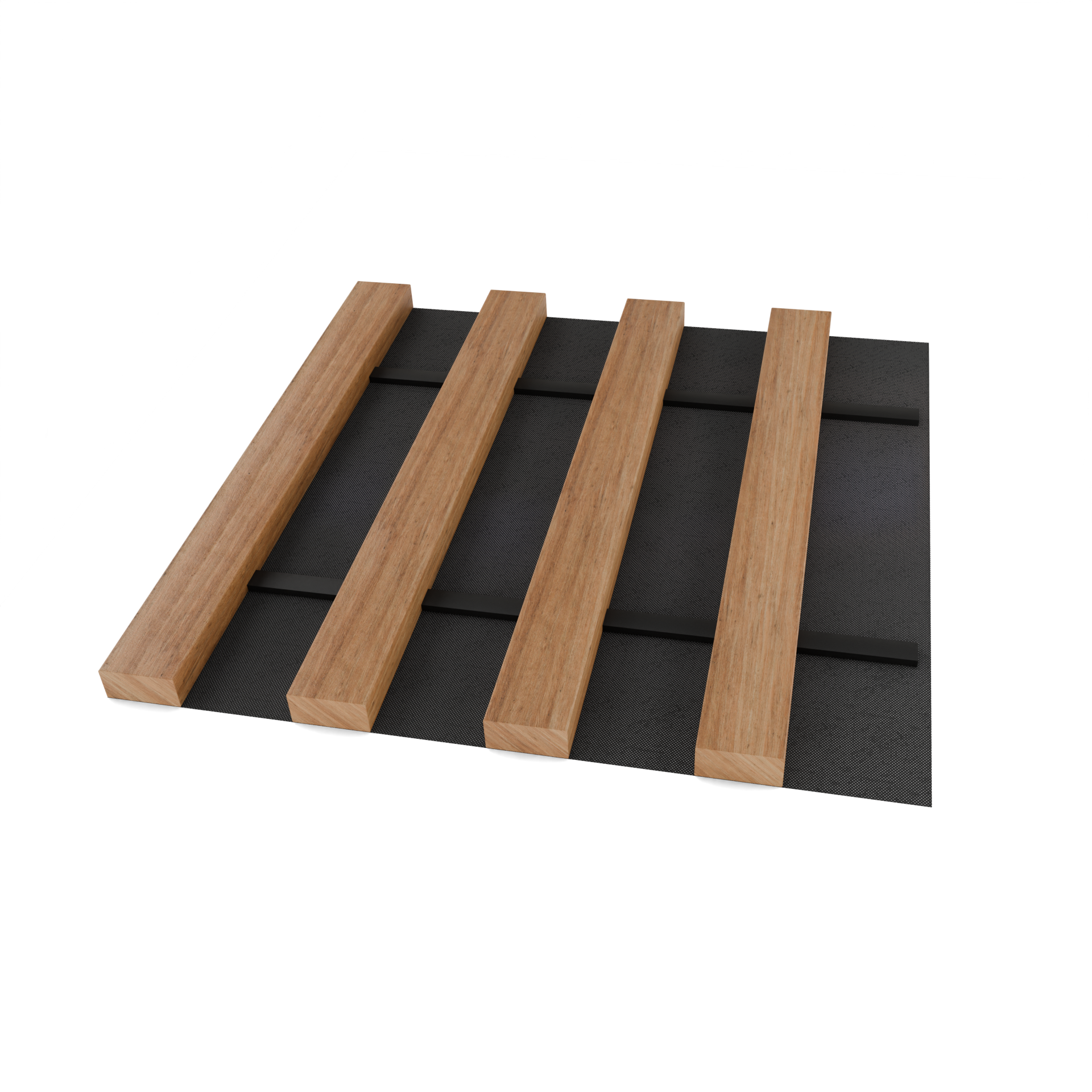

Profiles shown: 3060-2, 3060-3, 3060-4
Acoustic solid timber Panels is the trusted prefinished and preassembled linear batten system, engineered for performance and ease of installation. The battens in the 3060 Series are manufactured in Australia from a range of solid PEFC™ timbers and finished in solvent-free clear or tinted satin-matte lacquer.
This solid timber acoustic Panels profile series is technically designed to empower the exploration of sculptural interiors. It accommodates curves and can be manipulated during installation to adhere to concave or convex surfaces. Panels can also be mitred for a seamless vertical or horizontal corner finish.
Available Lengths MR
900mm - 3600mm, cut to specificationEffective Cover
296mmMax Thickness
28mmWeight
Variable, according to timber species and profile setout.Fire Rating
Group 3 fire rated
Applications
- Group 3 fire-rated interiors
- Horizontal, vertical, concave and convex curves, mitred corners
- Not suitable for external use
Acoustic Performance
- High-performance SC15 acoustic textile to reduce reverberation and increase speech intelligibility
- Achieves NRC of up to 1.0
Samples
- The sample profile comes in a set finish, order your preferred swatch as well
