Mesa

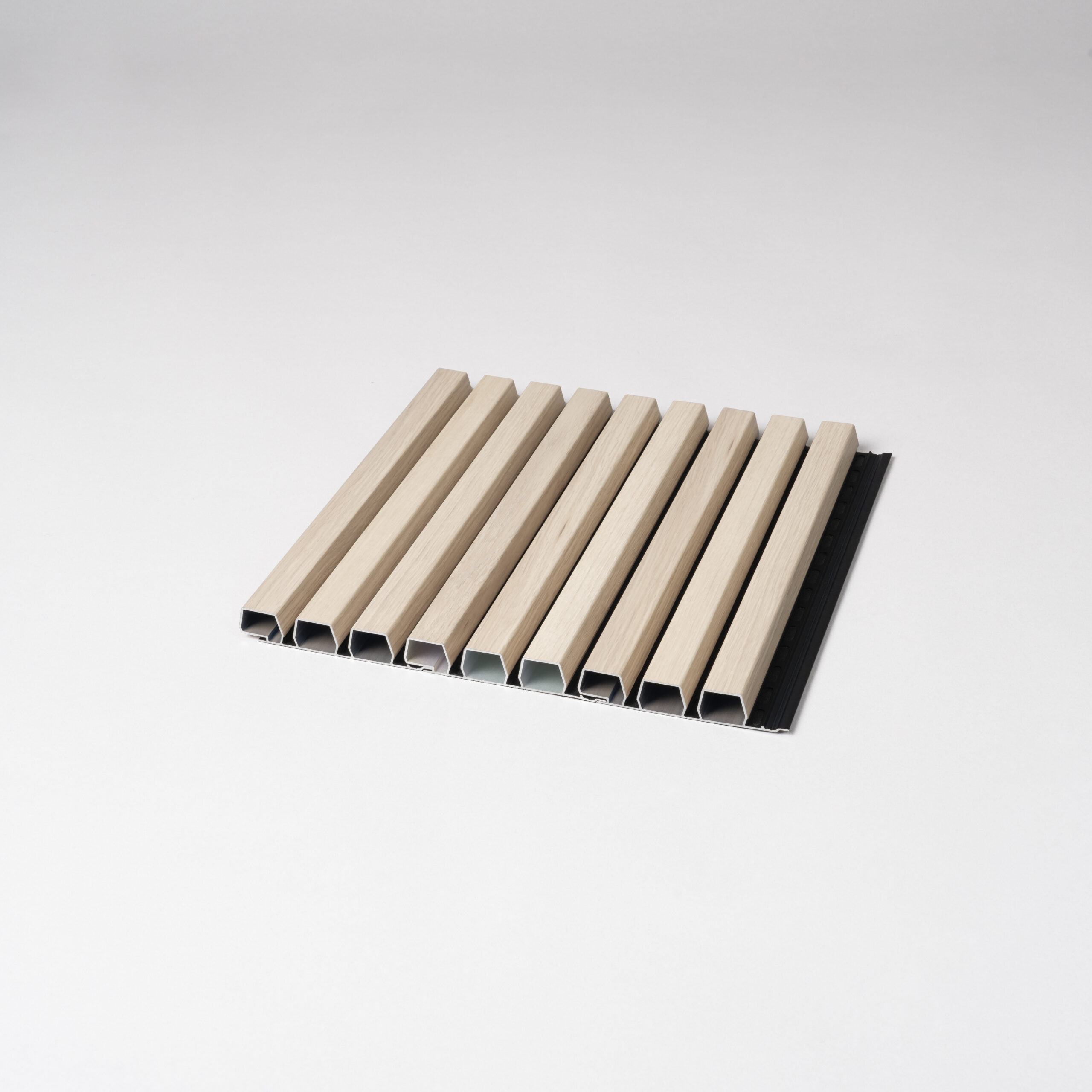

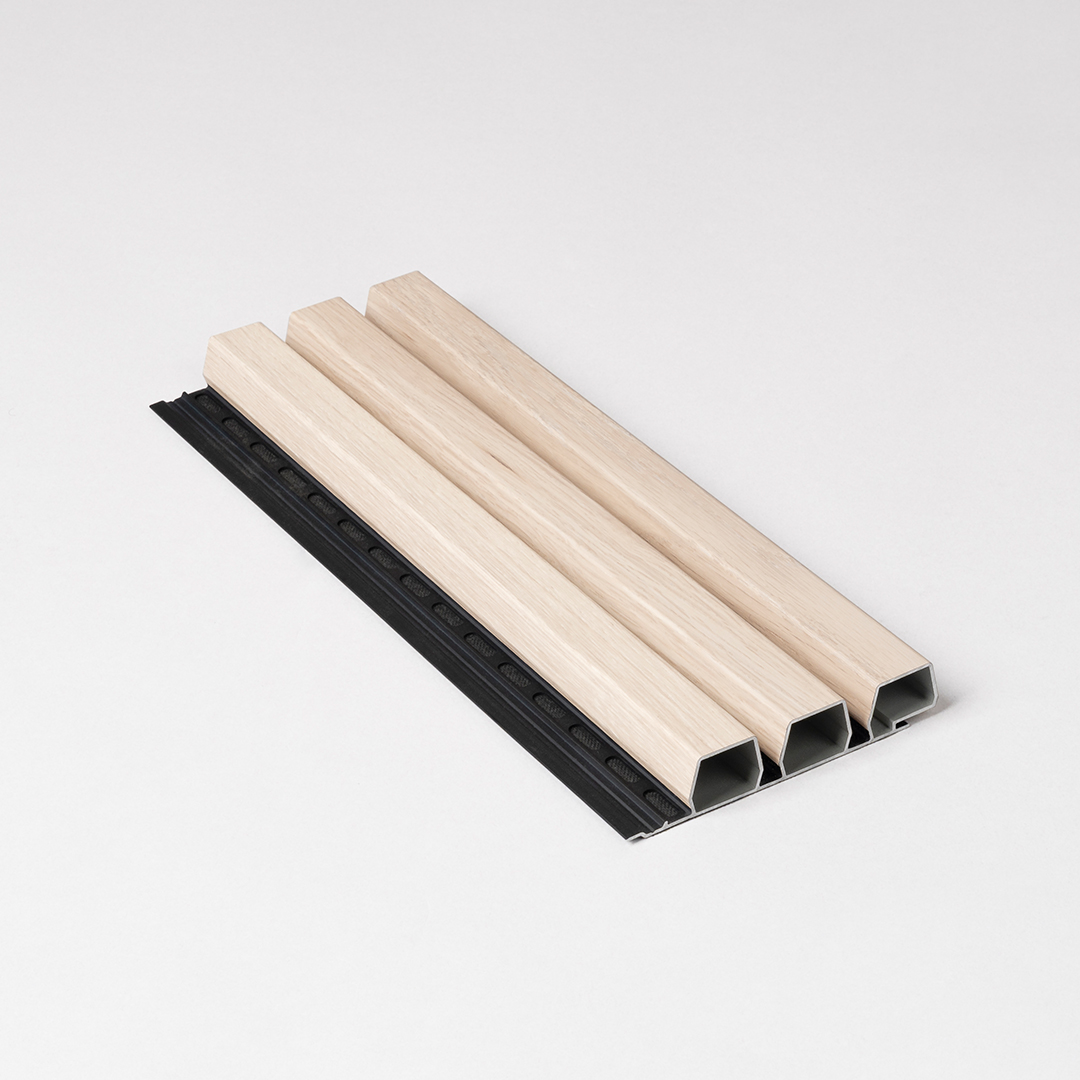

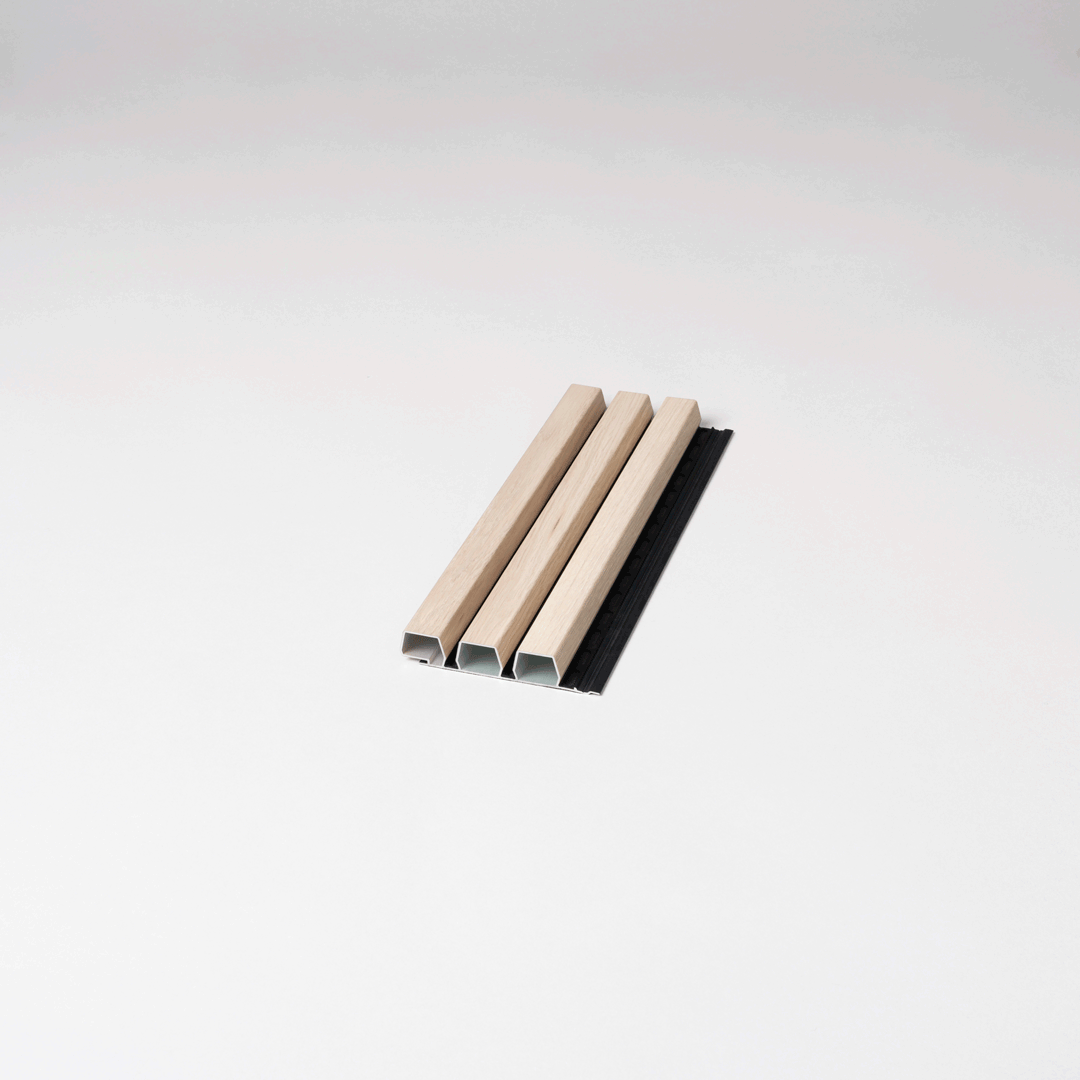

This Mesa tongue and groove lining has a wood panelling look-a-like profile but is easier, faster, and more cost effective to install than traditional panelling. Designed to perform in Group 1 fire-rated and noise-sensitive interiors acheiving an NRC of 0.75. Modulo® Acoustic is manufactured from perforated black anodised aluminium and bonded with NAVURBAN™ non-PVC Olefin decorative surface film.

Applications

  • Vertical, horizontal and curved interior walls and ceilings
  • Group 1 fire-rated interiors
  • Noise sensitive environments
  • High-occupancy interiors
  • Ideal for aged care, healthcare, education, hospitality, entertainment, retail, commercial, infrastructure hubs, and multi-storey residential

Peformance

  • Achieves NRC of 0.75
  • High-performance acoustic textile to reduce reverberation and increase speech intelligibility

Fire-rating

  • Group 1 fire-rated

Samples

  • Sample profile comes in a set finish, order your preferred swatch as well.
  • Available Length MR

    2.7m, 3.6m, 5.4m
  • Effective Cover

    100mm
  • Max Thickness

    22mm
  • Weight

    10.5kg per SQM
  • Curve Radius

    300mm
